Gabion Box
  Gabion Box





    Back

Gabion Box is galvanized double twisted hexagonal woven mesh with a rectangular box shape. The compartments or cells are of equal size and dimension and are formed by internal diaphragms being placed within the basket. The compartments or cells are filled with natural stone and the diaphragms minimize stone migration within the basket providing even distribution of the stone fill throughout the basket even after structural movement. The gabion box strength comes from a double twisted hexagonal mesh of steel wire which is reinforced by selvedge of heavier gauge wire running along the edges and by transverse internal diaphragms at 1m centres. In the event of accidental breakage of one or more of the wires, the double twisted wire configuration will ensure that the mesh will not unravel.

Gabions sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. Custom orders available.

Finish: Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Gabion boxes applications:

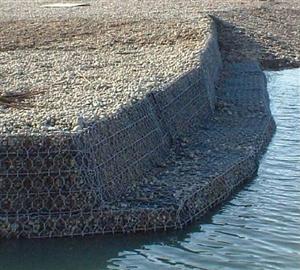

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection

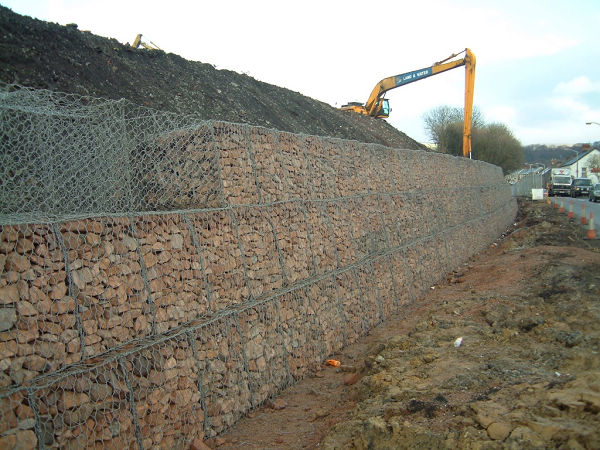

Strengthening structure of soil
Protection engineering of seaside area.
